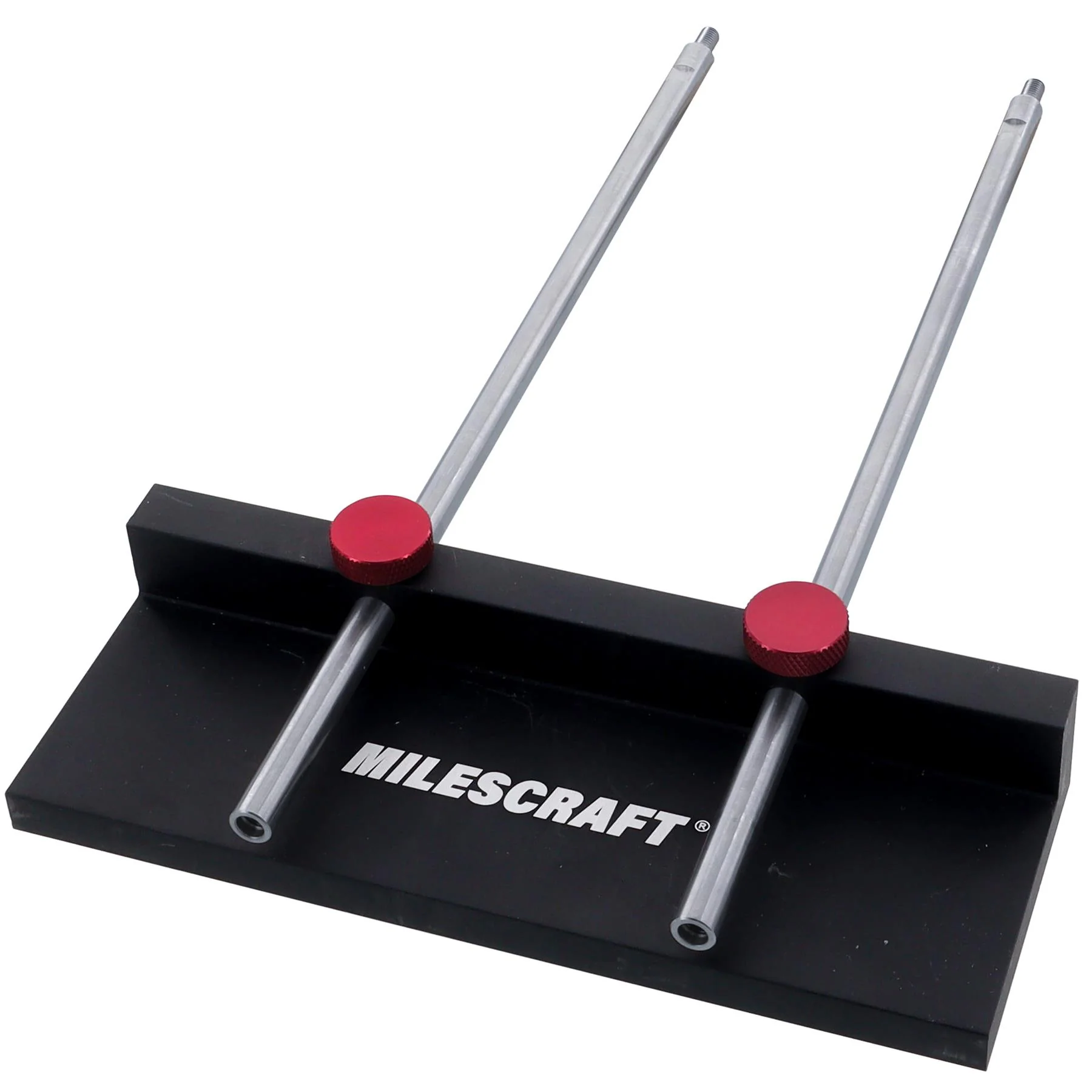

Milescraft DrillFence
Increase the accuracy and performance of the Milescraft DrillMatePRO with the Milescraft DrillFence. This all-metal edge guide will help you drill series of holes consistently the same distance off of the edge of any piece of stock. The all-metal construction helps reduce flex and the wide edge guide prevents movement when drilling. For drilling in the middle of wide boards, available extension rods can be purchased and attached end to end for as long as you need.
Features
- All metal construction keeps holes consistently spaced from edge of work piece
- Wide metal edge guide keeps DrillMatePRO in place when drilling
- Drill holes aligned from 37mm to 320mm (1-7/16" to 12-5/8") from the edge of a board
- Increase the reach of the DrillFence with optional extension rods (Sold separately)
Specification
- Fence Material - Machined Aluminum
- Guide Rod Material - Stainless Steel
- Range - 37mm-320mm (1-7/16"-12-5/8")
- Expanded Range: As Needed with Extra Rods
- Fence Width: 180.50mm (7-1/8")
- Guide Rod Thickness: 8mm (5/16")
- Guide Rod Length: 250mm (9-13/16")
- Guide Rod Thread:M5 x 0.08
- Guide Rod Spacing: 80mm (3-5/32")

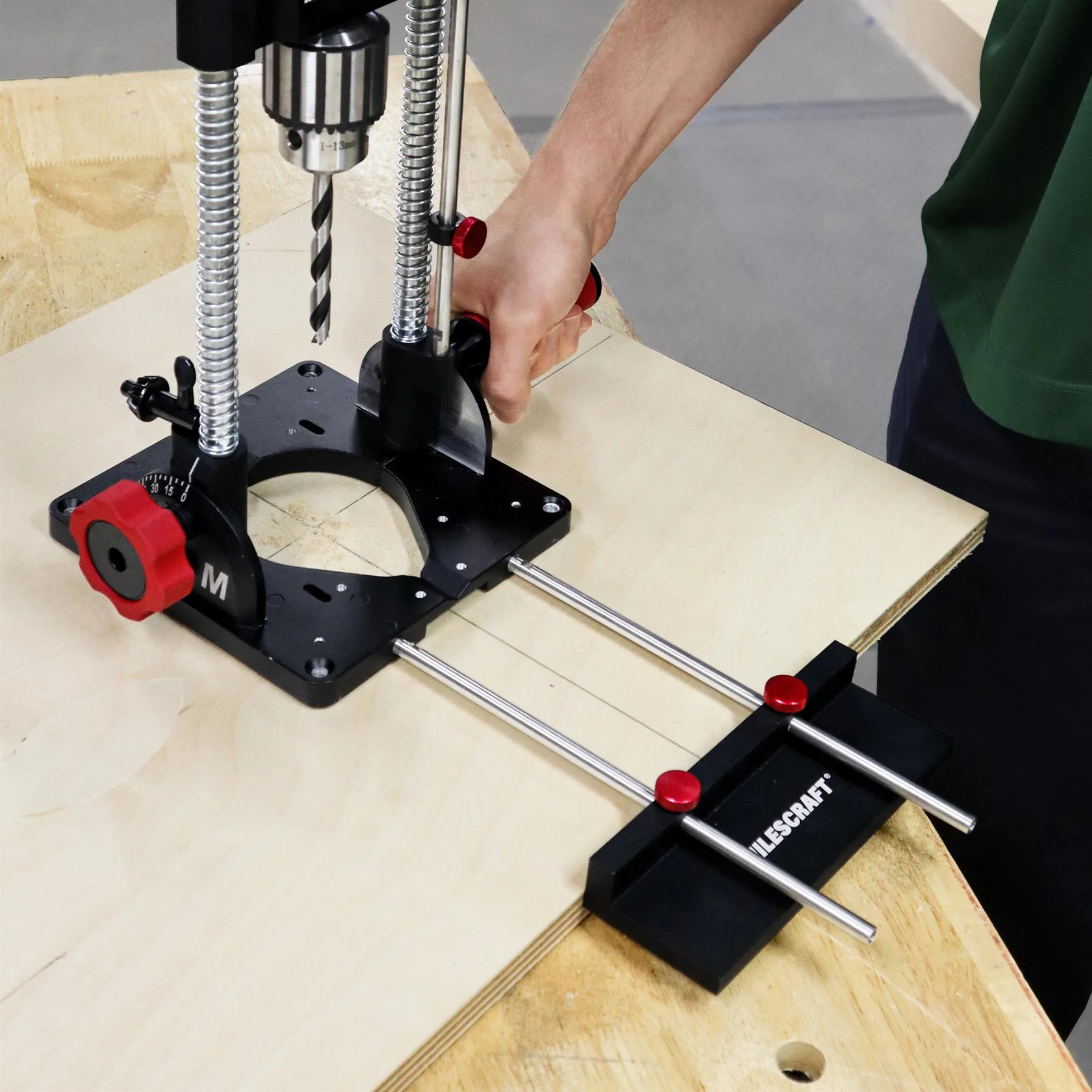

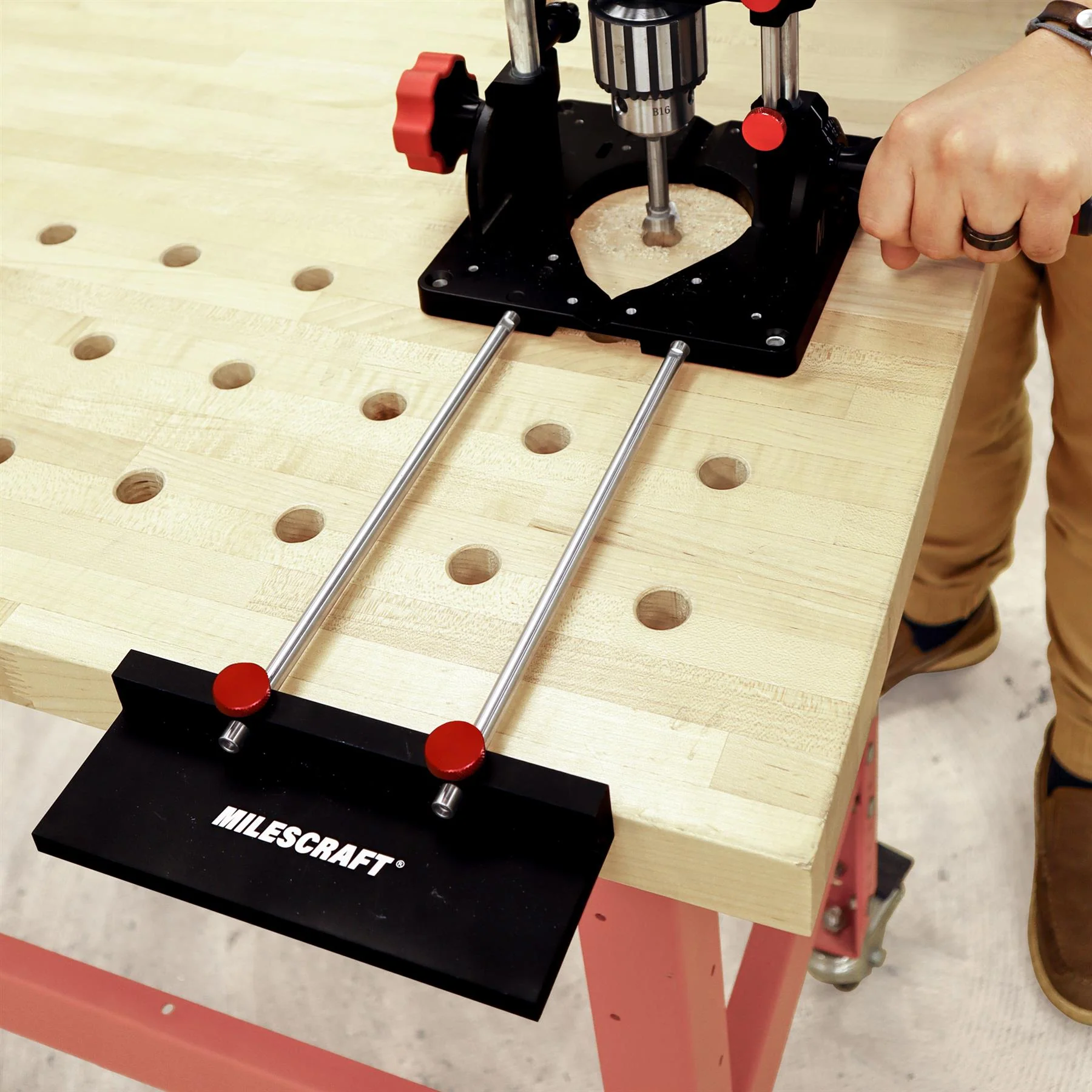

Please note: Images showing Milescraft DrillMatePRO are for illustrative purposes only. Item is the fence addition.
